K II Series
Product Features:
K-II Series Manual Chain Hoists are built with premium-grade components for long life in the toughest industrial and contracting applications. K-II manual chain hoists are small and light, yet extremely durable, with industry-leading quality. Features Of K II Type Hoist:-
- At rated capacity, load-bearing parts are only stressed to 50% of their limit
- Abrasion resistant load chain is made from heat-treated alloy steel for high, uniform strength
- The forged carbon steel hook design will not fracture under excessive load
- Safe, reliable mechanical brake activates instantly, holds the load securely
- Compact design for lightweight portability
- Articulating top hook allows you to properly center the load
- Sealed gears and brake protected against damage from dust and water
- Open load sheave allows easy inspection and cleaning without dismantling the unit
- Maintenance-free sealed bearings increase reliability and reduce the pull required to lift loads
- Heat treated load bearing parts are hardened for a long, trouble-free life
- High-impact steel housing with a similar weight to aluminum due to compact design
- Double reduction gearing requires minimum manual power to operate
- Double-pawl spring system for increased safety and reliability
Trusted by manufacturers, warehouses, construction sites, and industrial facilities.
| MODEL | K II TYPE 025D | K II TYPE 050D | K II TYPE 100D | K II TYPE 150D | K II TYPE 200D | K II TYPE 300D | K II TYPE 500D | |
| CAPACITY LOAD (KG) | 250 | 500 | 1000 | 1500 | 2000 | 3000 | 5000 | |
| LIFTING HEIGHT (M) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | |
| LOAD CHAIN | Number of Falls | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| DiameterX Pitch | 4×12 | 5×15 | 6×18 | 7×21 | 8×24 | 10×30 | 10×30 | |
| FORCE (N) | 235 | 240 | 250 | 265 | 335 | 375 | 360 | |
| NET WEIGHT (KG) | 6.2 | 10 | 12.2 | 16.5 | 19.5 | 32 | 42.1 | |

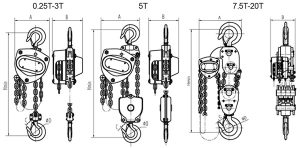

| DIMENSIONS (MM) | A(MM) | 121 | 148 | 172 | 196 | 210 | 255 | 280 |
| B(MM) | 114 | 132 | 151 | 173 | 175 | 205 | 189 | |
| C(MM) | 21 | 23 | 26 | 29 | 35 | 39 | 40 | |
| D(MM) | 31 | 35 | 40 | 45 | 50 | 55 | 65 | |
| HMIN(MM) | 280 | 345 | 376 | 442 | 470 | 548 | 690 | |
| MODEL | K II TYPE 750D | K II TYPE 1000D | K II TYPE 1500D | K II TYPE 2000D | |
| CAPACITY LOAD (KG) | 7500 | 10000 | 15000 | 20000 | |
| LIFTING HEIGHT (M) | 3 | 3 | 3 | 3 | |
| LOAD CHAIN | Number of Falls | 3 | 4 | 6 | 8 |
| DiameterX Pitch | 10×30 | 10×30 | 10×30 | 10×30 | |
| FORCE (N) | 370 | 385 | 400 | 410 | |
| NET WEIGHT (KG) | 62 | 78.5 | 135 | 190 | |
| DIMENSIONS (MM) | A(MM) | 463 | 463 | 420 | 630 |
| B(MM) | 189 | 189 | 220 | 220 | |
| C(MM) | 54 | 54 | 65 | 65 | |
| D(MM) | 75 | 75 | 110 | 110 | |
| HMIN(MM) | 690 | 700 | 980 | 1100 | |

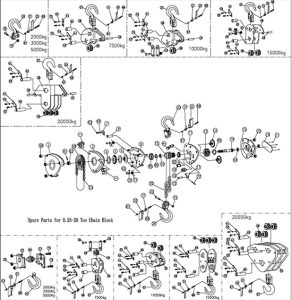

| No. | DESCRIPTION | 0.25T | 0.5T | 1T | 1.5T | 2T | 3T | 5T | 7.5T | 10T | 15T | 20T |
| 1 | Hand Wheel Cover Assembly | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 2 | Hand Wheel | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 3 | Brake Cover | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 4 | Friction Plate | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
