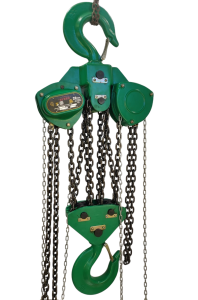

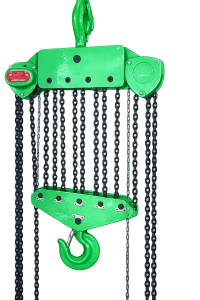

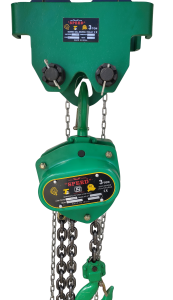

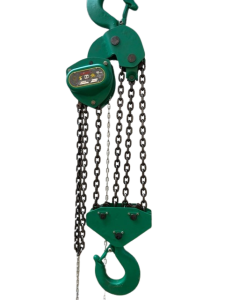

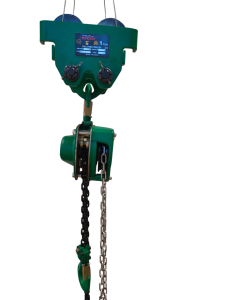

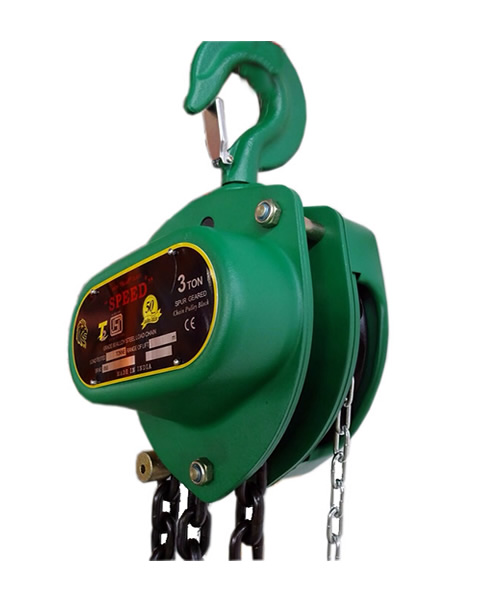

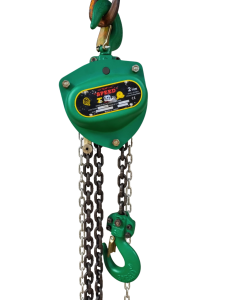

T2 Series
Product Features:
- Automatic Double Pawl Braking System
- Load Wheel: Alloy Steel- Heat Treated
- Mounted on 4 Ball Bearings for Smooth Operation
Specifications:
- Capacity ranges from 1 Ton to 25 Ton.
- Automatic double pawl braking system.
- Double cover protection
- Lightweight robust construction
- Low effort to lift maximum load
- Extra thick friction discs.
- Fully forged hooks are fitted with safety latches as standard.
- Alloy Steel Grade 80 Load Chain
- Zinc-plated hand chain as standard.
- Sealed bearings
- Each Chain Block is proof tested to 50% overload
Trusted by manufacturers, warehouses, construction sites, and industrial facilities.
| SWL | T | 1 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 |
| Standard Lift | M | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Effort Required to Lift Rated Load-Kgs | 25 | 35 | 40 | 37 | 37 | 40 | 38 | 40 | 40 | |
| No. of Falls of Load Chain | 1 | 1 | 1 | 2 | 3 | 4 | 6 | 8 | 10 | |
| Load Chain Diameter (MM) | MM | 6 | 8 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Dimensions (mm) | A | 151 | 175 | 205 | 189 | 189 | 189 | 189 | 189 | 200 |
| B | 172 | 210 | 255 | 280 | 433 | 463 | 776 | 900 | 970 | |
| C | 376 | 470 | 548 | 688 | 690 | 765 | 900 | 950 | 980 | |
| D | 40 | 50 | 55 | 65 | 67 | 85 | 95 | 106 | 106 | |
| K | 27 | 35 | 39 | 45 | 47 | 54 | 70 | 82 | 82 | |
| Net Weight with 3 MTR lift (KGS) | 13 | 20 | 35 | 41.3 | 62 | 79 | 135 | 190 | 215 |
