T Series

Product Features:

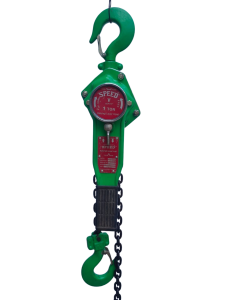

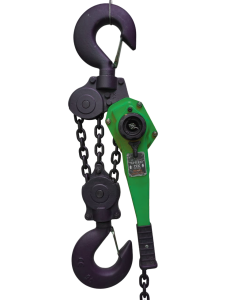

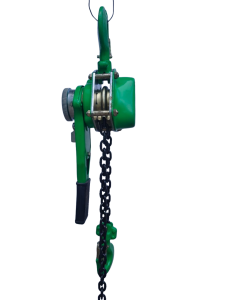

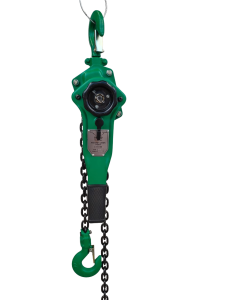

“SPEED” Ratchet Lever Hoist is a Universal Hoist for Lifting, Tensioning Lashing, In All Directions High-Quality Materials. Ensure. Light Weight. With Complete Reliability.

Hooks: Top and bottom hooks are made from drop-forged, heat-treated, fracture-resistant steel and feature 360° swivel action with safety latches for enhanced safety and reliability.
Lever: The short lever with an ergonomic rubber grip requires minimal effort to operate, even at full load, thanks to its optimized gear ratio.
Chain: The hoist is equipped with a high-grade, Grade 80 alloy steel load chain for superior strength and durability.
Capacity: Available in capacities of up to 9 Tons.

REMARK: Hoists with other lengths are also available.

Key Highlights

For Loading and Unloading.

To Lay drainage Pipes.

For Pulling down trees.

Useful for erection works.

Shipbuilding.

Mining

Download Brochure Talk to an Expert

Trusted by manufacturers, warehouses, construction sites, and industrial facilities.

Technical Specifications

Capacity (Tons)		0.5	1	1.5	2	3	6	9
Standard Lift M.		1.5	1.5	1.5	1.5	1.5	1.5	1.5
Proof Load (Tons)		0.750	1.500	2.250	3.000	4.500	9.000	13.5
Headroom (Drawn Close up) min. (mm)		300	365	400	445	520	640	790
Effort required to lift max. load (Kgs.)		25	27	30	32	34	37	40
No. of falls of load Chain		1	1	1	1	1	2	3
Load Chain size (mm)		5	6	7	8	10	10	10
Net Weight (Kgs.)		6	8	1	15	21	28	52
Dimensions (mm)	A	143	153	173	181	200	200	200
	B	86	90	99	105	112	112	112
	C	118	140	145	152	199	230	250
	D	31.5	37.5	42.5	45	50	53	82
	E	24	29	33.5	36	40	42.5	67
	H	300	325	385	385	480	620	790
	L	255	280	380	380	390	390	415

Applications

Construction

Ideal for lifting materials, tools, and equipment on construction sites.

Manufacturing

Supports production lines and material handling operations with ease.

Warehousing

Efficiently handles inventory movement and storage operations.

Equipment Installation

Perfect for positioning and installing machinery and industrial equipment.

Marine Industry

Suitable for lifting applications in ports, docks, and marine facilities.

Maintenance Operations

Enables safe lifting during repair, servicing, and maintenance tasks.

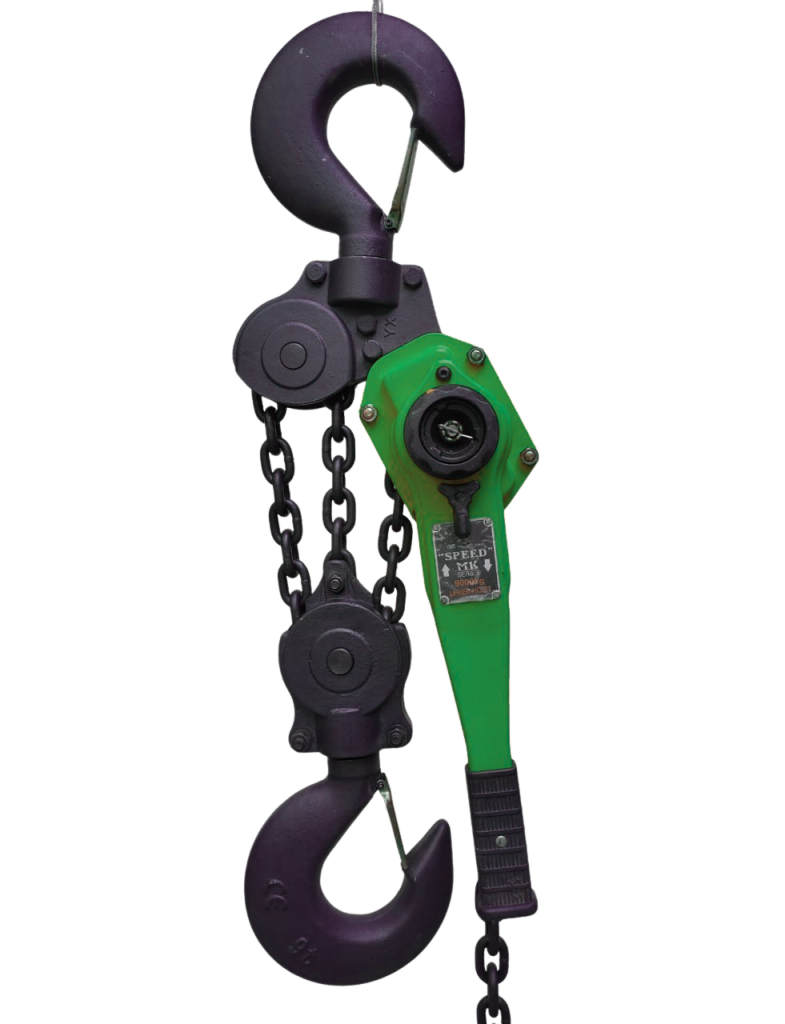

Why Choose This Product

Enhanced Safety

Built with reliable braking and load handling mechanisms for safer lifting operations.

Low Maintenance

Fully sealed gear system helps reduce wear and maintenance requirements.

Long Service Life

Manufactured using durable components to ensure years of dependable performance.

Low required effort

Requires minimal energy but delivers strong and immediate results.
