T–SERIES
Constructional Out Standing Features
- Body: Completely made of Cold Drawn quality steel sheets and light in weight.
- Hooks: For Models – T-800; T-1600; T-3200; & T-5400; Are of Drop forged Steel, fitted with safety catches so as to avoid accidental release.
- Jaw Grip: Specially made from Alloy, Steel, precision machined, and Heat treated so as to prevent slipping of the Wire Rope.
- Jaw Link: Made of Alloy Steel and Heat Treated.
- Wire Rope: Bright Galvanised, high Tensile, Steel Wire Rope, specially manufactured, with a Mixed Core.
- Spare Parts are easily available.
Product Features:
- Compact Body, lightweight with a high factor of safety
- Portable unlimited Rope Travel, Rugged and Modular designed construction, with low maintenance.
- Operated by one man. Under full control of the operator, Lifting and Lowering can be controlled to a fraction of a cent metre. With unlimited vertical, horizontal and oblique uses.
- Pulling, Lifting and Lowering with no special skill.
- Can be used as a Winch with multipurpose mounting positions, with the help of a sheave Pulley Block to increase lifting and pulling Power.
- Can be used in the following industries: Civil Defence, Rescue, Army, Mining, Transport, Forestry, Agriculture, Sugar Mills, Power Plants, Air Conditioning Plants, Ship Building, Ship Breaking, Nuclear Power Plants, Electricity Boards, Telephone, Gas/Water Pipe Line, Civil & Steel Construction, Naval and Defence Industries, Elevators, Facade Work (Cradles Erection) and at confined places.
- Every Machine is checked thoroughly by a competent person, before Despatch. 50% over load Test Certificate and 12 months Guarantee Certificate are issued with each machine.
Trusted by manufacturers, warehouses, construction sites, and industrial facilities.
| Model | 800KG | 1600KG | 3200KG | 5400KG |
| Pulling Capacity | 1200KG | 2400KG | 4000KG | 8000KG |
| Lifting Capacity | 800KG | 1600KG | 3200KG | 5400KG |
| Effect at Full Load | 35KG | 43.2KG | 44.7KG | 76KG |
| Rope Travel Per. Return Stroke (Approx) | 52MM | 55MM | 28MM | 30MM |
| Standard Length of Wire Rope | 20MTR | 20MTR | 20MTR | 20MTR |
| Dia of Wire Rope | 8.3MM | 11MM | 16MM | 20MM |
| Net Weight of Machine | 6.4KG | 12KG | 23KG | 65KG |

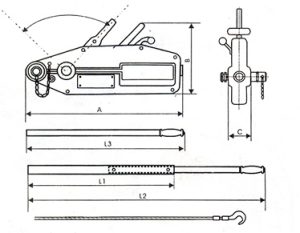

| Diamensions (A) | 426 | 545 | 660 | 932 |
| (B) | 238 | 284 | 325 | 420 |
| (C) | 64 | 97 | 116 | 155 |
| (L1) | 800MM | 800MM | 880MM | |
| (L2) | 1200MM | 1200MM | 1350MM | |
| (L3) | 800MM |
