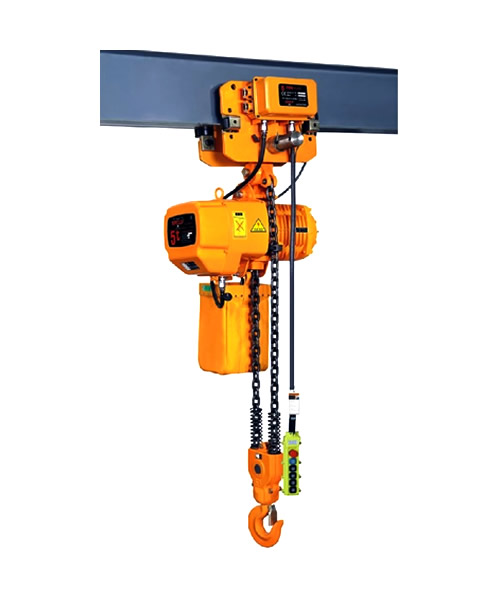

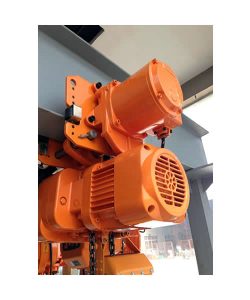

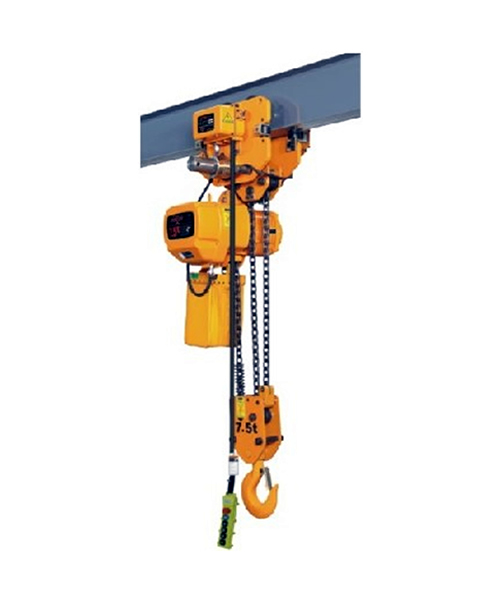

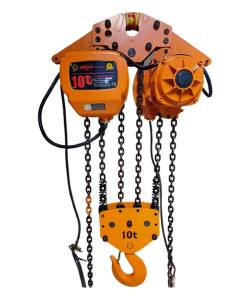

Speed Ultimate
Product Features:
- Body: Light aluminum alloy steel body which is light but hard and fit for hazardous conditions.
- Inverse phase sequence protecting device: It is the special electrical installation that controls the circuit, not working in case of wiring error in the power supply.
- Limit switch: The limit switch device is installed where the weight is lifted on and off, to make the motor stop automatically, so as to prohibit the chains from exceeding for safety.
- 24V/36V device: It is used to prohibit emergencies from occurring in case of a leakage in the switch.
- Side magnetic braking device: This device shall release the Instant brake in case of power failure.
- Chain Bag: It is Light and durable.
- Chain: The chain used is an Imported FEC80 ultra heat-treatable aluminum alloy chain
- Also available are Explosion Proof and Flame Proof models
Trusted by manufacturers, warehouses, construction sites, and industrial facilities.
Technical Parameters (15 Ton)
| Type | Capacity (ton) | Lifting Height (m) | Lifting Speed (m/min) | Lifting motor | Operating motor | ||||||||||
| Power (Kw) | Rotation Speed (r/min) | Phases | Voltage (V) | Frequency (Hz/s) | Power (Kw) | Rotation Speed (r/min) | Operating Speed (m/min) | Phases | Voltage | Frequency (hz/s) | I-Beam (mm) | ||||
| ULTIMATE 15-06 | 15 | 3/9 | 1.8 | 3.0×2 | 1440 | 3 | 220-440 | 50 | 0.75×2 | 1440 | 11/21 | 3 | 220-440 | 50 | 150-220 |
Size Specification (15 Ton)
| Type | Capacity (ton) | Unit (mm) | |||||||||||||||
| H | A | B | D | E | I | J | K | L | M | N | P | Q | R | T | Chain | ||
| ULTIMATE 15-06 | 15 | 1310 | 630 | 315 | 1070 | 535 | 54 | 54 | 120 | 96 | 88 | 55 | 926 | 560 | 142 | 231 | 11.2 |
Technical Parameters (20 Ton)
| Type | Capacity (ton) | Lifting Height (m) | Lifting Speed (m/min) | Lifting motor | Operating motor | ||||||||||
| Power (Kw) | Rotation Speed (r/min) | Phases | Voltage (V) | Frequency (Hz/s) | Power (Kw) | Rotation Speed (r/min) | Operating Speed (m/min) | Phases | Voltage | Frequency (hz/s) | I-Beam (mm) | ||||
| ULTIMATE 20-08 | 20 | 3/9 | 1.4 | 3.0×2 | 1440 | 3 | 220-440 | 50 | 0.75×2 | 1440 | 11/21 | 3 | 220-440 | 50 | 150-220 |
Size Specification (20 Ton)
| Type | Capacity (ton) | Unit (mm) | |||||||||||||||
| H | A | B | D | E | I | J | K | L | M | N | P | Q | R | T | Chain | ||
| ULTIMATE 20-08 | 20 | 1470 | 630 | 315 | 1260 | 630 | 70 | 70 | 150 | 115 | 88 | 95 | 1106 | 740 | 142 | 231 | 11.2 |
Technical Parameters (25 Ton)
| Type | Capacity (ton) | Lifting Height (m) | Lifting Speed (m/min) | Lifting motor | Operating motor | ||||||||||
| Power (Kw) | Rotation Speed (r/min) | Phases | Voltage (V) | Frequency (Hz/s) | Power (Kw) | Rotation Speed (r/min) | Operating Speed (m/min) | Phases | Voltage | Frequency (hz/s) | I-Beam (mm) | ||||
| ULTIMATE 25-08 | 25 | 3/9 | 1.3 | 3.0×2 | 1440 | 3 | 220-440 | 50 | 0.75×2 | 1440 | 11/21 | 3 | 220-440 | 50 | 150-220 |
Size Specification (25 Ton)
| Type | Capacity (ton) | Unit (mm) | |||||||||||||||
| H | A | B | D | E | I | J | K | L | M | N | P | Q | R | T | Chain | ||
| ULTIMATE 25-08 | 25 | 1470 | 630 | 315 | 1260 | 630 | 70 | 70 | 150 | 115 | 88 | 95 | 1106 | 740 | 142 | 231 | 11.2 |
